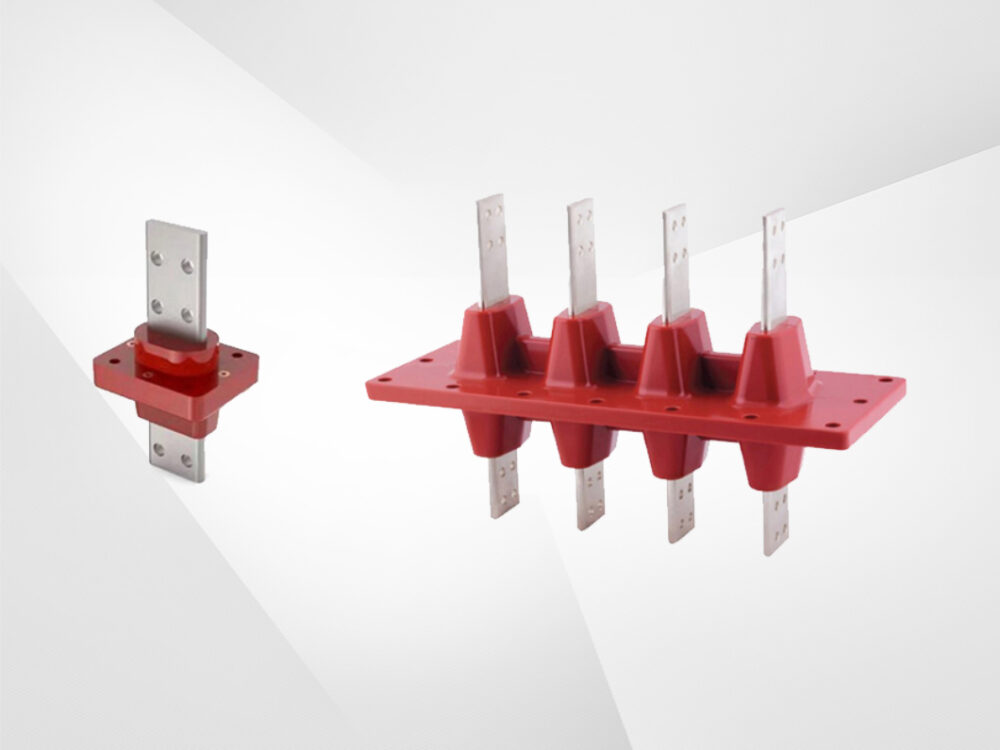

Transformer Monoblocks

Monoblocks for Transformers – High-Strength Bushing Support and Electrical Isolation

At Star Freight & Trading FZC LLC, we provide premium-grade Monoblocks, which are vital components used in power and distribution transformers. Monoblocks serve as the interface between transformer tanks and bushings, offering mechanical support and ensuring reliable insulation at the point where electrical conductors enter or exit the transformer.

These components are manufactured from high-grade epoxy resin or porcelain and are designed to withstand high voltages, thermal expansion, and mechanical stress.

Key Functions of Transformer Monoblocks:

• Bushing Support: Monoblocks hold bushings firmly in place, maintaining the structural integrity of transformer terminals.

• Electrical Isolation: They provide essential insulation between the high-voltage terminals and the grounded transformer tank.

• Leak Prevention: Designed with precision to prevent oil leakage and maintain a sealed tank environment.

• Durability: Withstand outdoor environmental conditions, high voltage stress, and thermal cycling.

Features and Advantages:

• Manufactured with high-dielectric strength materials

• Available in single or multi-port configurations

• Compatible with a wide range of bushing types and voltage ratings

• Designed to meet IEC and ANSI transformer standards

• Ensures long-term stability, safety, and reliable performance

Applications:

• Power and distribution transformers in utility, industrial, and commercial setups

• High-voltage transformer terminals requiring safe bushing integration

• Transformers exposed to outdoor or high-stress environments

Our Monoblocks are sourced from renowned global manufacturers to ensure superior quality and performance. With our focus on precision-engineered components, we support transformer maintenance, refurbishment, and manufacturing projects throughout the UAE and GCC region.

Star Freight & Trading FZC LLC is your trusted partner for all transformer spare parts, offering expert consultation, fast delivery, and top-tier customer support to ensure your transformer systems operate with maximum reliability.

---

Frequently Ask Questions

Q. What is a transformer monoblock?

A. A transformer monoblock is a compact, factory-assembled unit that integrates a transformer, medium-voltage switchgear, and low-voltage distribution in a single enclosure for efficient and safe power distribution.

Q. How does a transformer block work?

A. A transformer block works by receiving electrical energy at high voltage, reducing (or increasing) the voltage through electromagnetic induction, and distributing it safely at the desired voltage level to various circuits or loads.

Q. What is the purpose of a transformer box?

A. A transformer box, often seen in utility and industrial setups, houses and protects the transformer equipment, ensuring safe voltage conversion, shielding it from environmental damage, and preventing unauthorized access.

Q. What are the 4 parts of a transformer?

A. The four main parts of a transformer are the core (which provides a magnetic path), windings (primary and secondary coils for voltage transformation), insulation (to prevent short circuits), and the tank/enclosure (which protects and cools the internal components).

Q. What is CT and PT?

A. CT (Current Transformer) and PT (Potential Transformer) are instrument transformers used to step down high current and voltage levels respectively, allowing safe monitoring and measurement in electrical systems.
