Transformers are the backbone of electrical transmission and distribution systems. They carry the responsibility of delivering power safely and efficiently to homes, industries, and infrastructure. However, despite their rugged design and reliability, transformers are not immune to internal faults. This is where the Buchholz relay comes into play—a crucial device that enhances transformer safety by detecting issues before they become catastrophic.
In the UAE, where the demand for uninterrupted power is high and environmental conditions can challenge even the most durable equipment, transformer protection is critical. This article explores what a Buchholz relay is, how it works, and why it’s an essential part of transformer safety systems. We’ll also look at how Star Freight Trading helps maintain grid safety through quality transformer components.

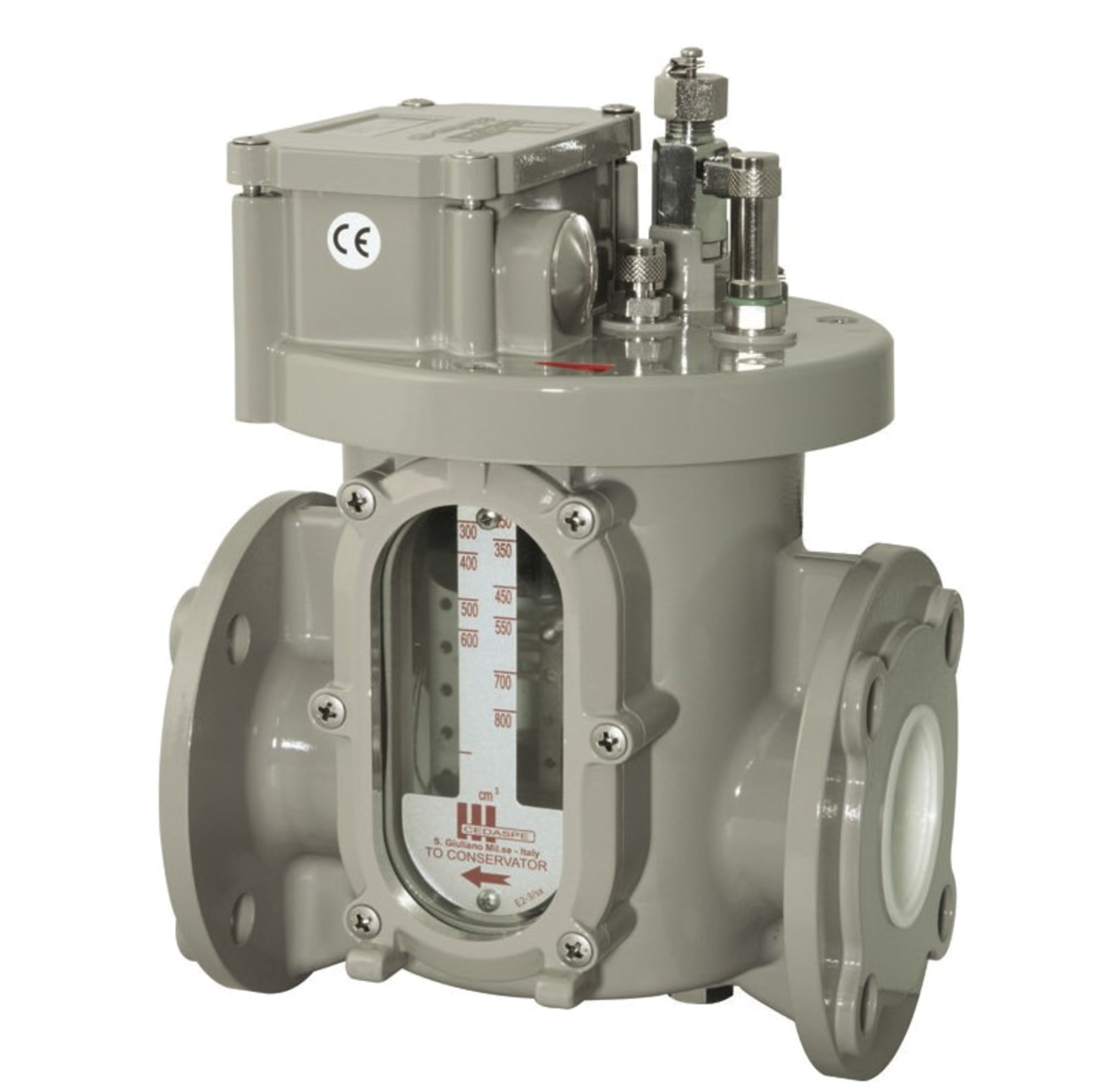

What Is a Buchholz Relay?
A Buchholz relay is a protective device used in oil-immersed transformers. Positioned in the pipeline between the transformer’s main tank and its conservator (oil expansion tank), it acts as a gas and oil movement detector. Invented by Max Buchholz in 1921, the relay has become a standard component in medium to large power transformers.
Its primary function is to detect internal faults within the transformer and trigger protective actions such as:
-
Alarm signals during minor issues
-
Circuit breaker tripping during severe internal faults
It provides early warning of problems like overheating, arcing, insulation failure, or oil leakage—all of which can lead to transformer damage or even explosions if not addressed in time.
How Does a Buchholz Relay Work?
The Buchholz relay is installed in the oil pipe that connects the conservator to the main tank. It consists of two floats and mercury switches (or reed contacts in modern designs). Here’s how it operates:
1. Gas Accumulation Detection (Minor Faults)
-
When a fault such as insulation breakdown or slight arcing occurs inside the transformer, gases are generated.
-
These gases flow upwards and accumulate in the relay chamber.
-
As the gas volume increases, it displaces the oil and lowers the upper float.
-
This movement triggers the alarm contact, alerting operators to investigate before a major failure happens.
2. Oil Surge Detection (Major Faults)
-
In the event of a severe internal fault (like a short circuit), a large quantity of gas and oil is displaced rapidly.
-
The sudden oil surge pushes the lower float, triggering the trip contact.
-
This sends a signal to disconnect the transformer from the system via circuit breakers, preventing further damage or fire.
Why Is a Buchholz Relay Important for Transformer Safety?
The Buchholz relay serves as a first line of defense against internal transformer failures. In regions like the UAE, where transformers must operate continuously under harsh conditions, early fault detection is key to avoiding downtime and damage.
Here are the key safety benefits:
1. Early Warning System
The relay detects even small gas formations from minor faults. This allows maintenance teams to take preventive action before the fault escalates into a major failure.
2. Fire and Explosion Prevention
In the case of serious faults, the Buchholz relay helps disconnect the transformer immediately, stopping oil combustion and minimizing the risk of explosion—a critical factor in sensitive installations like airports, hospitals, and data centers.
3. Cost and Downtime Reduction
By catching issues early, the relay helps avoid costly repairs or complete transformer replacement. This reduces unplanned outages and extends the transformer’s operational life.
4. Passive and Reliable Operation
The Buchholz relay does not require an external power source to function. It operates entirely based on fluid movement and float displacement, making it extremely reliable and maintenance-friendly.
Applications in the UAE Power Sector
The UAE’s fast-growing energy landscape includes a mix of traditional power stations, renewable installations, and critical infrastructure—all relying on transformer reliability. Buchholz relays are installed in:
-
Utility substations managed by DEWA, ADWEA, and SEWA
-
Solar power stations like the Mohammed bin Rashid Al Maktoum Solar Park
-
Industrial plants in Jebel Ali Free Zone and ICAD
-
Oil and gas facilities across Abu Dhabi and Ras Al Khaimah
-
High-rise commercial buildings in Dubai and Sharjah
-
Remote installations in desert or offshore regions
With the high ambient temperatures and heavy load conditions typical in the UAE, the Buchholz relay becomes an essential component of transformer protection systems.
Regular Testing and Maintenance
For optimal performance, the Buchholz relay must be regularly tested and maintained:
-
Gas testing: Collect and analyze the gas from the relay to identify the fault source.
-
Float and contact testing: Ensure that the floats move freely and that the contacts trigger alarms and tripping mechanisms.
-
Oil level check: Ensure the pipeline between the conservator and transformer is properly filled to allow relay operation.
This preventive maintenance strategy reduces the chances of unexpected outages and supports long-term transformer health.
Star Freight Trading: Your Partner in Transformer Safety
Star Freight Trading, based in the UAE, is a leading supplier of transformer spare parts and protective devices, including:
-
High-quality Buchholz relays compatible with various transformer sizes
-
Conservators, bushings, relays, and sealing systems
-
Transformer fluids that support cooling and insulation
-
Expert guidance on installation and testing practices
We serve energy providers, contractors, and industries with products that meet UAE standards and harsh climate demands.
Future Outlook: Digital Protection Integration
As the UAE continues to modernize its power grid, Buchholz relays are also evolving. Modern versions now integrate with SCADA systems, enabling:
-
Remote monitoring of gas levels and faults
-
Digital fault recording and reporting
-
Predictive maintenance scheduling
The future of transformer protection lies in combining time-tested mechanical safety (like the Buchholz relay) with digital intelligence for smarter, faster response.
Final Thoughts
The Buchholz relay is a small device with a massive impact on transformer safety. By detecting gas formation and oil surges, it prevents catastrophic failures, minimizes financial losses, and ensures uninterrupted power delivery across the UAE’s vast infrastructure.
In a country where power reliability is essential for economic growth and quality of life, such protection systems are not optional—they are essential.
Partner with Star Freight Trading to source reliable Buchholz relays and transformer components that keep your systems safe, stable, and future-ready.
