Transformer oil is one of the most important components in the power distribution process, yet it remains largely unnoticed by most outside the electrical engineering world. For transformers to function efficiently and safely, especially in high-demand and high-temperature regions like the UAE, the oil inside a transformer performs two primary tasks: cooling and insulation.
In this blog, we will break down how transformer oil supports these roles, why they are essential to power system performance, and how businesses and utility providers in the UAE can benefit from understanding and maintaining their transformer oil systems.
What Is Transformer Oil?

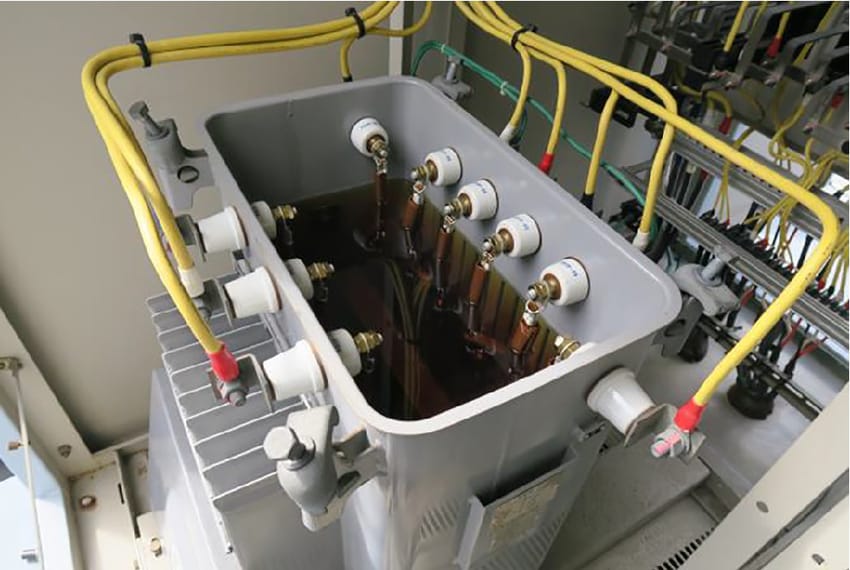

Transformer oil—also known as insulating oil—is a refined mineral oil or synthetic fluid designed to serve both electrical and thermal functions. It is used in oil-immersed transformers, switchgear, capacitors, and circuit breakers to ensure operational stability and longevity.
The key properties of transformer oil include:
-
High dielectric strength (insulating ability)
-
Excellent thermal conductivity
-
Chemical stability under high temperature
-
Low moisture content
These properties enable transformer oil to prevent short circuits and maintain a stable internal environment even under heavy electrical load.
Why Cooling and Insulation Are Vital
Transformers handle high-voltage electricity, converting it to usable levels for homes, commercial zones, and industrial facilities. During this process, two main challenges arise: heat buildup and electrical insulation. Both must be controlled effectively to prevent damage, failure, or dangerous malfunctions.
In this context, the oil inside a transformer serves as a dual-purpose solution: absorbing heat generated from transformer coils and providing insulation between electrical components.
The Cooling Function of Transformer Oil
When electrical current flows through transformer windings, it generates heat. Without an efficient way to dissipate this heat, the transformer could overheat, leading to insulation breakdown, equipment damage, or complete failure.
Here’s how transformer oil aids in cooling:
Heat Absorption
The transformer oil surrounds the core and windings, directly absorbing the heat they emit. The thermal conductivity of the oil ensures that this heat is efficiently transferred away from the transformer’s internal parts.
Heat Transfer to Radiators
Once the oil has absorbed the heat, it flows through a radiator system or external cooling fins. As the oil circulates, it releases the heat into the surrounding air. This continuous cycle maintains the internal temperature of the transformer, even during peak load periods.
Cooling Efficiency in UAE Conditions
In the UAE, where external temperatures frequently exceed 45°C during summer, this cooling mechanism becomes especially crucial. Oil with high thermal stability is needed to perform reliably in such extreme conditions. Poor-quality or aged oil loses its cooling efficiency, putting the transformer at risk.
The Insulation Role of Transformer Oil
Apart from cooling, oil inside a transformer serves as an insulating medium between internal components, particularly the windings and core. Here’s how:
Electrical Insulation
Transformer oil acts as a dielectric fluid, meaning it resists the flow of electrical current. This prevents unintended current paths and electrical discharges between parts operating at different voltage levels. Without this insulation, the risk of short circuits or arc flash incidents would increase significantly.
Moisture Control
Moisture is a serious enemy of insulation. Even a small amount of water can drastically reduce the dielectric strength of transformer oil. High-quality oil helps displace and prevent moisture, maintaining safe insulation conditions. In coastal or humid regions of the UAE, this protection becomes even more important.
Oxidation and Sludge Prevention
Transformer oil also helps protect windings and internal components from oxidation. As oil degrades, it can form sludge—a thick, insulating layer that interferes with heat dissipation and insulation. Regular oil monitoring ensures these problems are caught early, maintaining proper function.
Transformer Oil vs. Air Cooling
Some smaller transformers use air as a cooling and insulating medium, but this method is less efficient and not suitable for high-voltage or high-load systems. Oil-immersed transformers, on the other hand, can handle larger capacities, provide better cooling, and offer superior insulation—all with fewer size constraints.
For the UAE’s infrastructure, where power needs are substantial and reliability is non-negotiable, oil-filled transformers are the standard in both commercial and utility-grade applications.
Transformer Oil Maintenance and Testing
The performance of oil inside a transformer depends on its quality and condition. Over time, transformer oil can degrade due to heat, moisture, and contamination. Regular maintenance is critical to ensure its ongoing effectiveness in cooling and insulation.
Key oil tests include:
-
Dielectric Strength Test: Measures the oil’s ability to resist electrical breakdown.
-
Moisture Content Test: High water levels reduce insulation performance.
-
Acidity Test: High acidity can lead to corrosion of metal parts.
-
Dissolved Gas Analysis (DGA): Identifies early signs of internal transformer faults.
In the UAE, where critical infrastructure depends on constant power supply, transformer oil testing should be part of every maintenance strategy—especially in sectors like oil and gas, aviation, water desalination, and data centers.
Star Freight Trading: Your UAE Partner for Transformer Fluids
As a leading supplier of transformer spare parts and fluids in the UAE, Star Freight Trading offers high-performance insulating oils tailored for extreme environments. Whether you need mineral oil, synthetic oil, or biodegradable alternatives, we provide reliable products backed by industry expertise.
We also help our clients with oil selection, testing schedules, and oil regeneration services to extend the life of their transformers and avoid costly replacements or downtime.
Our solutions support utilities, contractors, and industrial clients across Dubai, Abu Dhabi, Sharjah, and beyond.
Sustainability and Eco-Friendly Options
The UAE is actively pursuing clean energy goals under its Energy Strategy 2050, which includes reducing the environmental impact of power systems. As part of this initiative, biodegradable transformer oils—such as natural esters—are gaining attention.
These oils provide:
-
Superior moisture tolerance
-
High fire resistance
-
Environmental safety in case of leakage
-
Long service life
For green buildings and solar power facilities, biodegradable transformer oils offer a sustainable alternative without compromising cooling or insulation performance.
Final Thoughts
The oil inside a transformer is not a secondary component—it’s a core part of what makes modern power distribution systems safe, reliable, and efficient. Its dual role in cooling and insulation keeps high-voltage transformers running smoothly, even in the most challenging environments like the UAE.
Regular testing, the right oil selection, and expert maintenance are essential to maximizing transformer performance. With support from trusted suppliers like Star Freight Trading, businesses and utilities across the UAE can ensure their transformers continue to deliver stable, uninterrupted power.
Upgrade your transformer’s performance. Choose premium oil. Power UAE with confidence.
